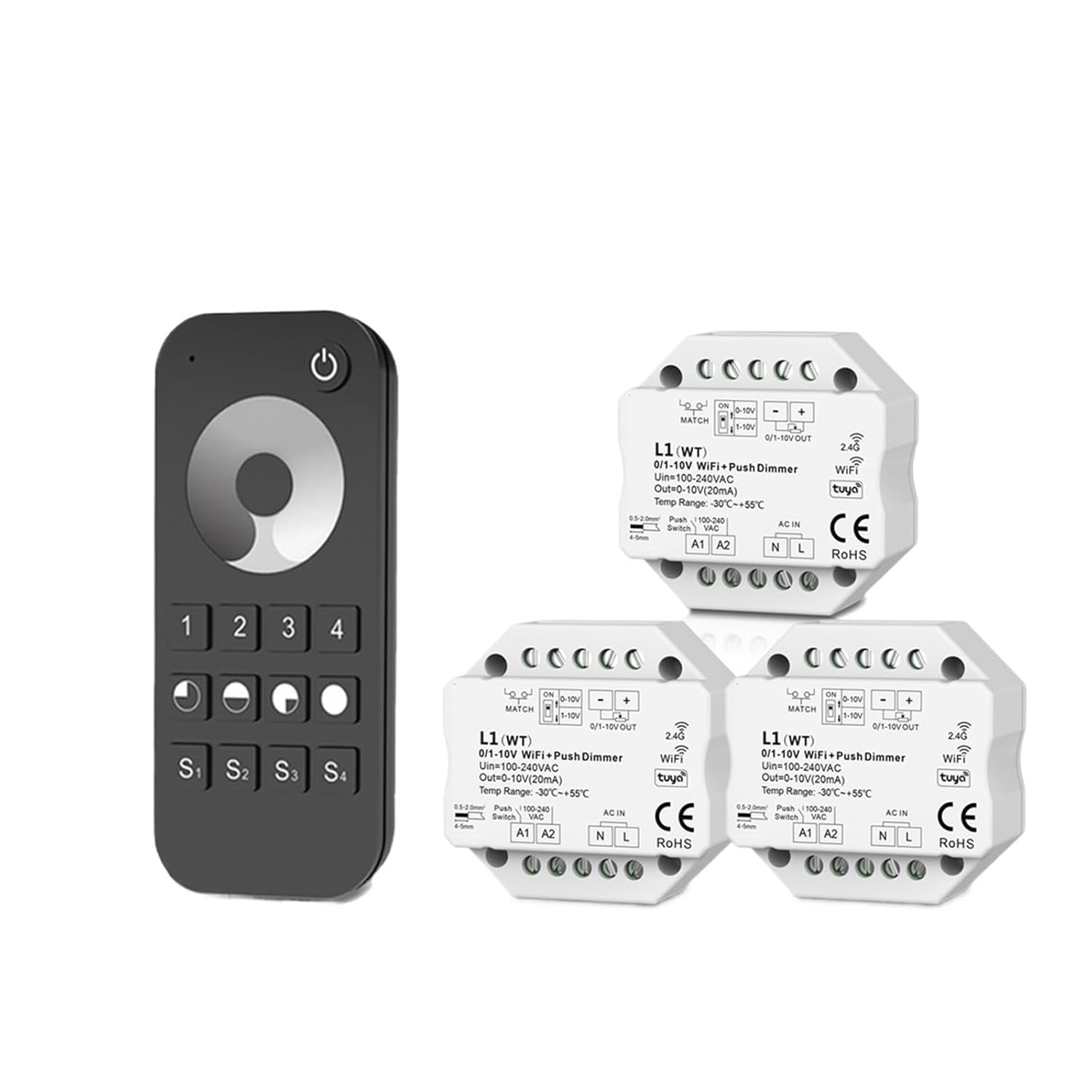

0/1-10V AC Push LED Dimmer Switch 2.4G Dimming Remote Control Voice Control(2xL1(WT) and RT6)

Low Voltage TransformersWTL1: 0/1-10V push dimmerR11: 1 zone remote control (on/off and dimmable)RT6: 4-zone remote control (on/off and dimmable)PK1: Rotary remote control (on/off and dimmable)feature + + AC push 0/1-10V dimmer, 1 channel output.Output 1 channel 0/1-10V signal, connected to 0/1-10V dimming power supply256 levels of 0-100% smooth dimming without any flicker.Compatible with 2.4G single zone or multi-zone dimming remote control.Each L1(WT) controller can also serve as a WiFi-RF converter, and then use the to synchronously control one or more dimming LED controllers or drivers.Connect an external push button switch to achieve on/off and 0-100% dimming functions.The light on/off fade time is 3 seconds optional.Easy to place in standard wall junction box behind push button switch.Input voltage: AC100-240VOutput signal: 0/1-10V (20mA)Output current: Maximum 1.5A (AC)Input signal: + 2.4GHz+Push Dim control distance: 30m (barrier-free space)Dimming level: 256 levelsDimming range: 0-100%NOTE: The remote control does not include batteries. network connection and operationPress and hold the Match/Set key for 2 seconds,Or press the Match/Set key twice quickly,Clear previous network connections and enter configuration mode.The blue LED indicator flashes rapidly.Press and hold the Match/Set key for 5 seconds:Clear the previous network connection and enter AP configuration mode.Blue LED indicator light speed.If configuration fails, try AP configuration. If the network connection is successful,The blue LED will stop flashing,In , you can find DIM devices. interface operation: touch the brightness slider to adjust the brightness.L1(WT) with radio frequency remote control (optional)The end user can choose the appropriate matching/removal method. Two options are available:Use the matching key of L1(WT)match:Short press the matching button of L1 (WT), and immediately press the on/off button (single zone remote control) or zone button (multi-zone remote control) on the remote control.delete:Press and hold the matching button of L1 (WT) for 10 seconds to delete all matches. The light flashes 5 times to indicate that all matched remote controls have been deleted.Power cyclematch:Turn off the power to L1(WT), then turn on the power, and repeat. Immediately press the on/off button (single-zone remote control) or zone button (multi-zone remote control) on the remote control 3 times. The light flashes 3 times to indicate successful matching.delete:Turn off the power to L1(WT), then turn on the power, and repeat. Immediately press the on/off button (single-zone remote control) or zone button (multi-zone remote control) on the remote control 5 times. The indicator light flashes 5 times to indicate that all matching remote controls have been deleted.
